Acoustic Energy AE100 MK2 Walnut Bookshelf Speakers

Acoustic Energy AE100 MK2 Walnut Bookshelf Speakers

The AE100² has been designed with a view to achieving high sound pressure levels from a small enclosure.
This is obtained principally through the use of a 130mm mid-bass drive unit built around an ultra-high force, long throw motor system.
Bass performance is augmented by a slot shaped duct allowing for a considerable cross-sectional area while negating the issues of air turbulence.

A 25mm soft dome tweeter featuring our Wide Dispersion Technology completes the driver compliment and is housed within a 15mm HDF cabinet.
Taking design cues from the award-winning 500 Series and finished in a choice of satin white, black or walnut vinyl veneer finishes.
The AE100² is sure to look good placed on speaker stands or bookshelves, while delivering a sound that belies its compact size.

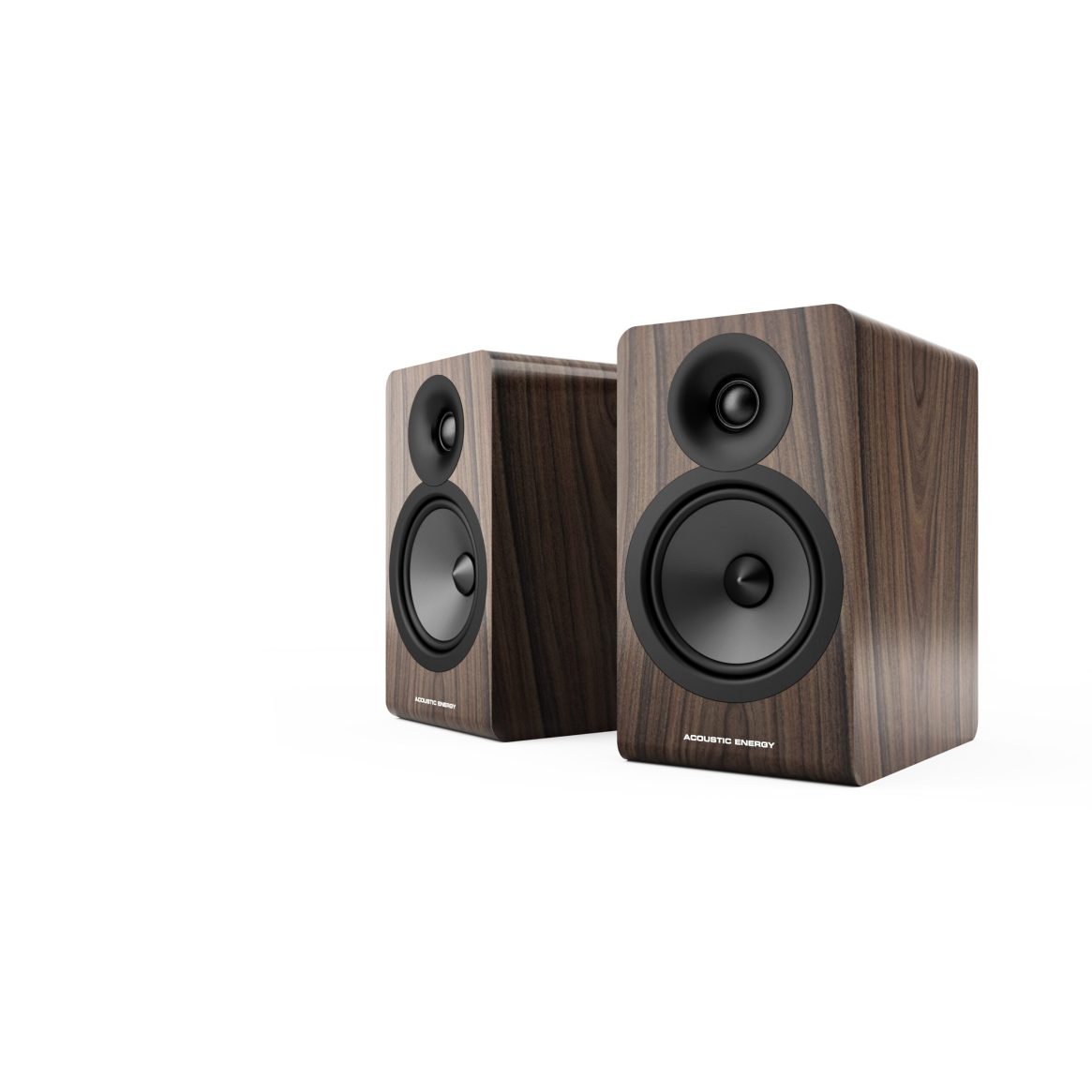

TWEETER
Acoustic Energy’s bespoke 25mm soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching.
Paired with our Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high-power neodymium motor assembly ensures reliable, distortion-free high-volume playback.

DRIVERS
The 130mm bass/mid driver used in the 100 Series has been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures.
The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.

CABINET
The 100 Series uses thin, 15mm high density (HDF) enclosures with carefully tuned bracing, reducing harmful resonances whilst retaining body and substance from compact, practical cabinets.

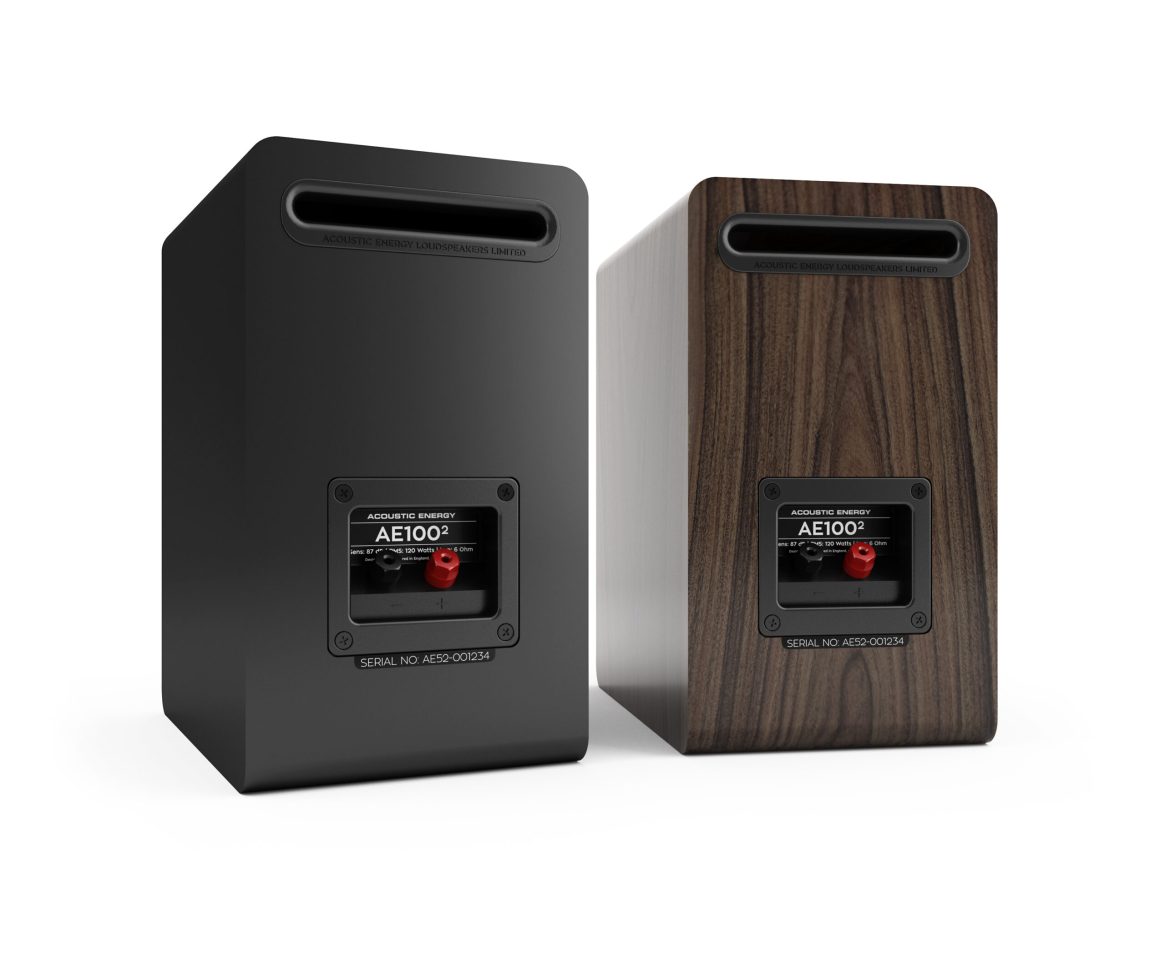

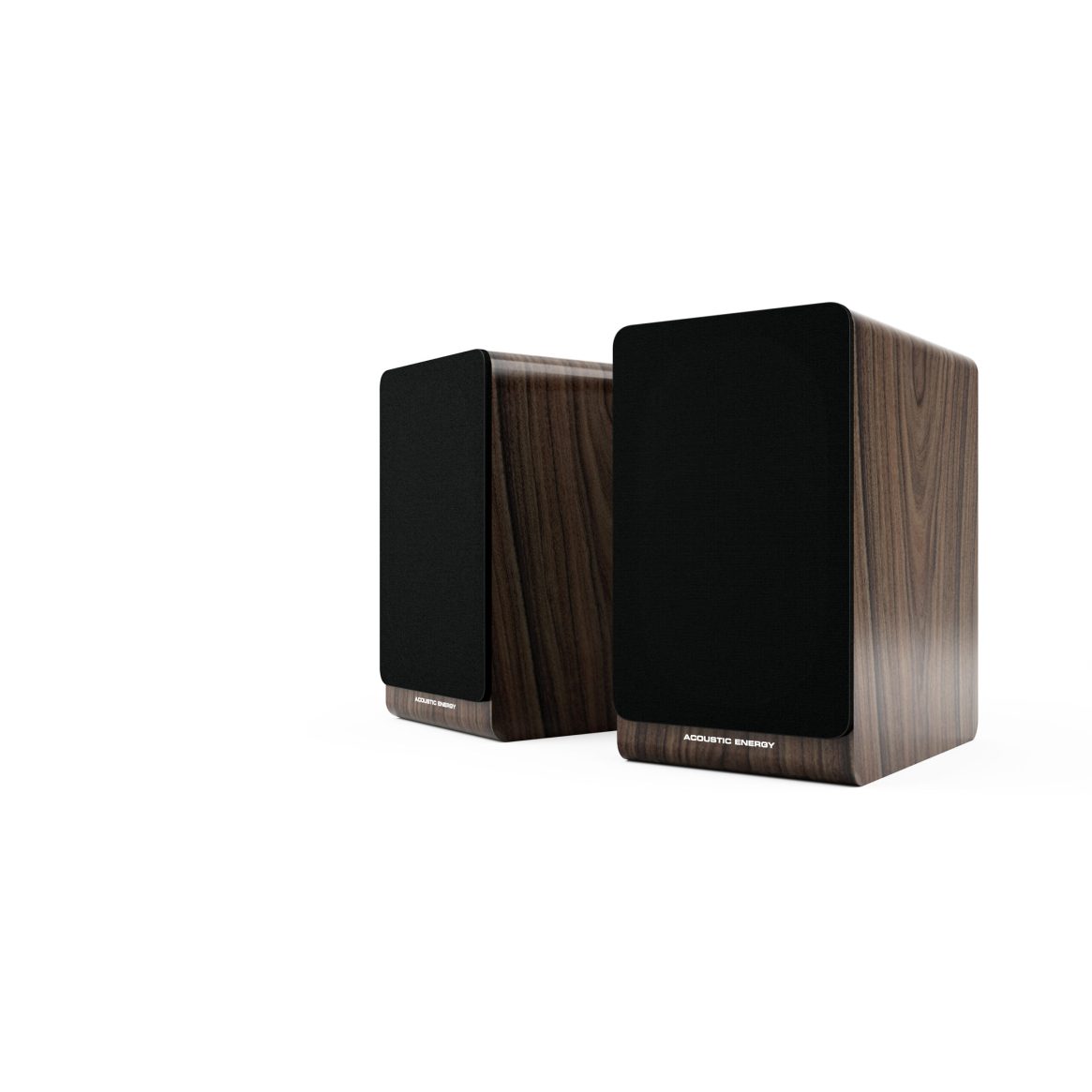

The rear slot porting* enhances smooth bass extension with minimal room impact, allowing easy placement. The AE109² and AE120² feature inert mass-loading for additional stability and acoustic damping, all models come supplied with slim magnetic grilles.

*The AE108² is a sealed box with no slot port. Controls: Volume adjust 0dB to -inf HF shelf +/-2dB LF shelf +/-2dB

Drive Unit: 130mm paper cone Tweeter: 25mm fabric dome
Frequency Range: 51Hz – 26kHz
Sensitivity: 87dB Peak SPL: 112dB
Power Handling: 120w
Crossover Frequency: 2.9kHz
Impedance: 6ohms
Design: 2-way Grilles: Slim, cloth magnetic fit
Dimensions (mm): 290 x 165 x 250 (HxWxD)
Weight: 9.2kg (pair)
