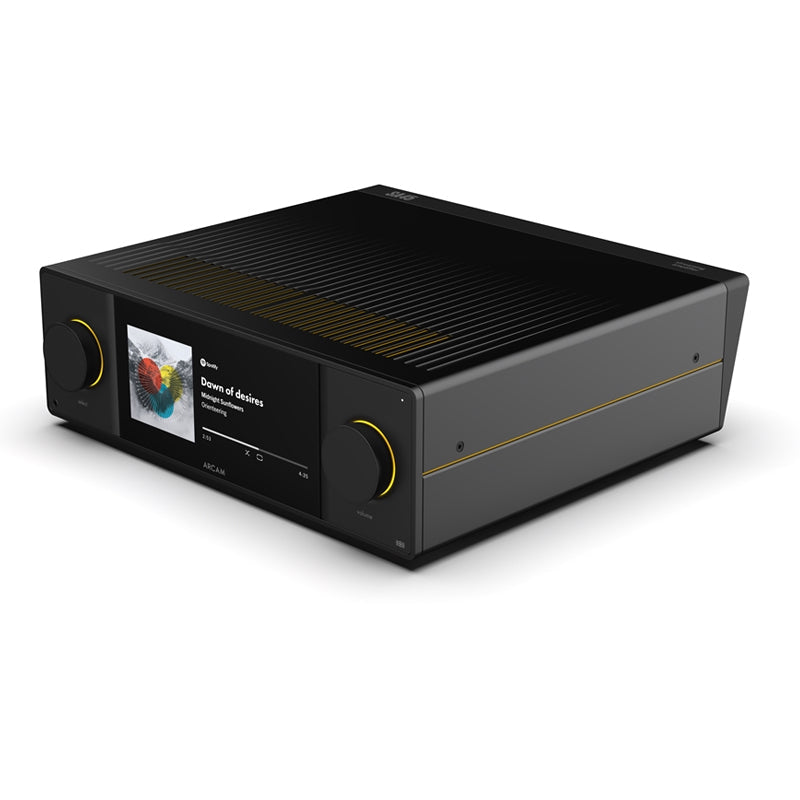

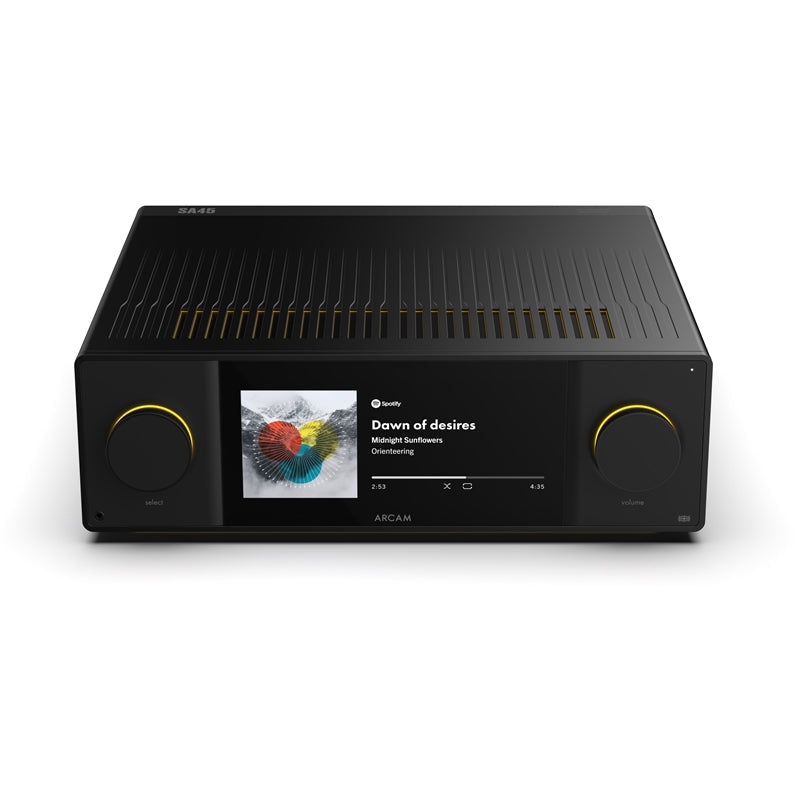

Arcam SA45 Radia Series Streaming Integrated Amplifier
Arcam SA45 Radia Series Streaming Integrated Amplifier
Arcam SA45 Radia Series Streaming Integrated Amplifier

Vendor:Electro

Arcam SA45 Radia Series Streaming Integrated Amplifier

Sale price$3,022.99Regular price $5,193.54

Arcam SA45 Radia Series Streaming Integrated Amplifier

The Arcam SA45 is the ultimate all-in-one streaming system for the dedicated audiophile. Designed to preserve the most delicate sounds, this high-resolution audio solution captures every nuance and excitement of your favourite music. Expertly crafted in Cambridge, UK, the SA45 evolves from the acclaimed ARCAM A49, integrating cutting-edge technologies and a host of new features for unparalleled sound quality.

Superior Sound Engineering and Technology

The Arcam SA45 boasts a meticulously engineered 6-layer digital audio and streaming platform. The design includes a ground plane throughout the entire board, minimizing noise and interference to the sensitive audio components. Key components feature the latest Hyperstream iV DAC topology from ESS in a balanced configuration with advanced jitter elimination, ensuring pristine sound reproduction.

High-Performance Power Supply

At its core, the SA45 features a newly designed linear toroidal transformer power supply. This innovation drives the entire internal operation with reduced noise, while a switching supply activates only during peak efficiency in standby mode. The result is a powerhouse of music with exceptional clarity and fidelity.

Advanced Class G Amplifier

Building on decades of innovation, our 5th generation Class G amplifier design ensures the best sound quality and dynamics. This class of amplifiers is renowned for its superior sound and efficiency. Every component and material used has been rigorously tested to deliver uncompromising audio performance.

User-Friendly Interface and Connectivity

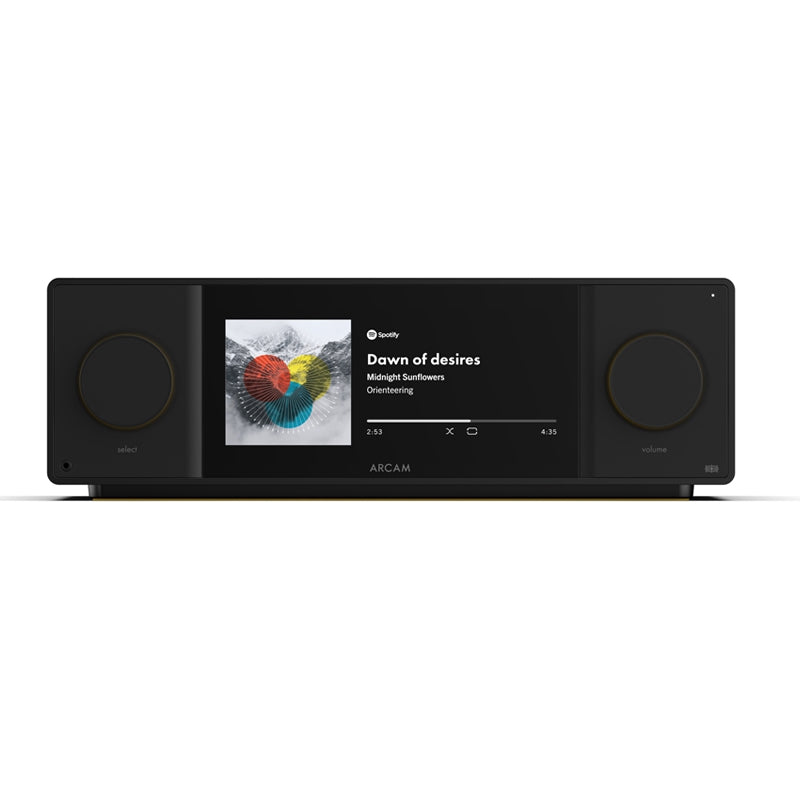

The SA45 features a large, bonded 8.8" high-resolution display, showcasing album artwork and metadata legibly from any seating position. This integrated amplifier supports most smartphones and tablets, as well as popular streaming services. Connect to your home network seamlessly via Wi-Fi using the ARCAM Radia App. Enjoy instant playback with Apple Airplay, Google Chromecast, Spotify Connect, Tidal Connect, and Roon.

Flexible and Adaptable

The ARCAM SA45 offers extensive outputs for subwoofers and includes Dirac Live Room Correction. This feature ensures exceptional sound quality in any room with your choice of speakers and subwoofers, delivering flexibility and customization for the discerning listener.

The Arcam SA45 Radia Series Streaming Integrated Amplifier is the epitome of high-resolution audio solutions, combining expert craftsmanship, innovative technology, and versatile connectivity to provide an unparalleled listening experience.

Features

  • All new, ultra High-ResolutionStreaming Platform to deliver on sound quality and user experience.
  • ARCAM Class G Amplification with 2x 180W of ultra-low distortion power.
  • Balanced analogue and digital audio paths.
  • MM & MC Phono inputs.
  • HDMI eARC input.
  • Dual Subwoofer Outputs and Dirac Live Room Correction.
  • High-resolution display for clearly visible album artwork and metadata.
  • Supports Apple Airplay, Chromecast, Spotify Connect and Tidal Connect.
  • Setup with ARCAM Radia App for presets, Internet Radio and Podcasts.
  • Supports up to 32 bit / 768 kHz Hi-res audio.
  • Roon Ready

Specifications

Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz—20kHz, 8Ω: 180W
2 channels driven, 1kHz, 4Ω: 300W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%

Analogue Inputs
Number of inputs: 3x RCA pairs + 1 XLR pair
Phono Inputs: MM and MC
Frequency response: 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB

Digital Inputs
Supported Streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 1024), MP3, MP4, OGG, WMA
Supported Streaming Bit depth: 16, 24, 32
Supported Streaming sample rates (kHz): Up to 768 kHz
Gapless Playback: Yes
Digital Audio Inputs: 1x HDMI ARC, 2x Coaxial (RCA), 2x Optical (Toslink)
Supported Digital input Bit depth: 16, 24
Supported Digital input sample rates (kHz): Up to 192 kHz
Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 110dB

Wireless Specifications
Bluetooth Profile: 5.2; A2DP Sink/Source, AVRCP, BLE, aptX, aptX HD, aptX Adaptive, AAC
Bluetooth Transmitter Frequency and Power:
2,402 MHz to 2,480 MHz <13dBm
Wi-Fi Network: IEEE 8002.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power:
2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels) <20dBm
5G Wi-Fi Transmitter Frequency Range and Power:
5150-5250 MHz <23dBm, 5250-5350 MHz & 5470-5725 MHz <20dBm, 5725-5850 MHz <14dBm

General
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 1500W
Power consumption (standby): <0.5W
Dimensions W x D (including speaker terminals) x H (including feet):
431 x 344 x 143mm
Weight (net): 17 kg
Weight (packed): 20 kg

Supplied accessories:
Mains lead(s)
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions

Arcam SA45 Radia Amp Specs Sheet
