Monitor Audio CLG-W12 Outdoor Subwoofer
Monitor Audio CLG-W12 Outdoor Subwoofer

Vendor:Electro

Monitor Audio CLG-W12 Outdoor Subwoofer

Sale price$1,218.99Regular price $2,094.04
Monitor Audio CLG-W12 Outdoor Subwoofer
The CLG-W12 is a passive subwoofer. Optimised for discreet sub-surface installation, its proprietary Monitor Audio bandpass design incorporates an internally loaded 12" C-CAM driver which sits in a waterproof rotationally-moulded polymer enclosure buried below the garden surface - only the CLG-W12’s domed output port is visible.

From this little ‘chimney’ powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140/CLG160 satellites for punchy and articulate full-range garden sound.

The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140/CLG160 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.

In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.

When installed the Climate Garden System delivers a smooth, wide-open and controlled frequency response from 30 Hz to 30 kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio’s CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.

Technology
  • Below ground garden installation. On patios or decks will install within a suitably sized planter
  • Extended response down to 30 Hz
  • Long throw 12" sub-woofer driver featuring C-CAM cone technology and rigid die-cast chassis
  • Bandpass cabinet enclosure delivers high efficiency and punchy, extended bass
  • 70/100 V and 4 ohm tap for flexible system design: additional units can be added and ‘daisy-chained’ together
  • Robust moulded cabinet: strong and waterproof with fewer joints to compromise structural integrity
  • Certified to IP54 Ingress Protection rating
  • Dark brown finish blends with garden colours
  • Applications: garden, deck and patio, theme parks
Specification
Frequency Response (-6 dB)
30 Hz — 100 Hz

Sensitivity (1W@1M)
87 dB

Nominal Impedance
4 ohms or 70/100 Volt line level (cable select)

Maximum SPL
110 dBA

Power Handling (RMS)
250 W

Recommended Amplifier Requirements
100 — 250 W

Drive Unit Complement
1 x 12" C-CAM cone, long throw sub-bass driver

Crossover Recommendation
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

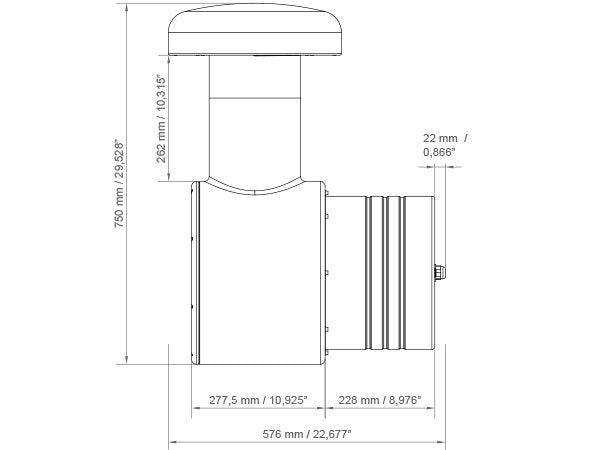

External Dimensions (H x W x D)
750 x 380 x 505.5 mm (191/2 x 1415/16 x 197/8")

Connection
Encapsulated cable connection

Environmental Protection Rating
IP54

Colour / Finish
Brown

Weight
19.5 kg (42 lb 14 oz)
