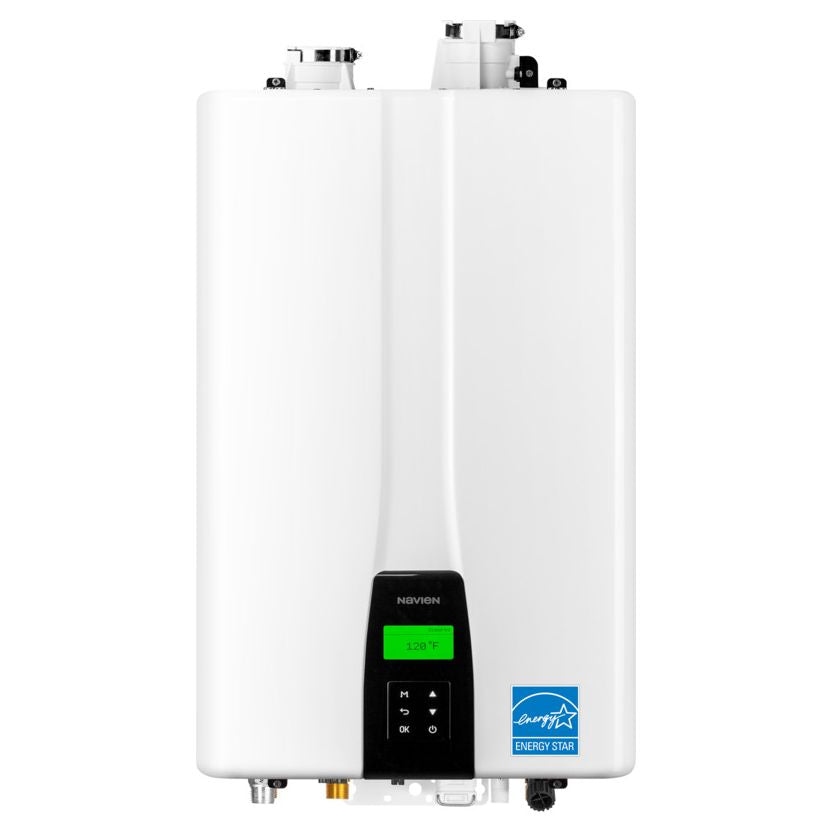

NPE-180A2 - Condensing Tankless Water Heater - 150,000 BTU
Navien NPE-180A2 - Condensing Tankless Water Heater - 150,000 BTU
The Navien NPE-180A2 is a high-efficiency condensing tankless water heater designed for residential and light commercial use. With a capacity range of 10,000 to 150,000 BTU per hour and a Uniform Energy Factor of 0.95, it delivers powerful performance while minimizing energy waste. The unit provides a maximum flow rate of 8.4 GPM at a 35°F temperature rise, making it suitable for multiple simultaneous hot water demands. Compact and wall-hung, it installs easily indoors or outdoors and supports field conversion between natural gas and propane.
Equipped with Navien’s dual stainless steel heat exchangers and a built-in recirculation pump, the NPE-180A2 offers exceptional durability and faster hot water delivery. It features the EZNav™ multi-line control panel with integrated HotButton™ for user-friendly control, and it supports cascading and common venting with up to 12 units. Approved for 2" or 3" venting materials, it supports long vent runs and uses a 1/2" gas line up to 24 feet. With ultra-low NOx emissions and multiple built-in features, the NPE-180A2 meets a wide range of installation needs with high efficiency and flexibility.
Features
- 150,000 BTU/h input with 0.95 UEF efficiency
- Flow rate up to 8.4 GPM at 35°F rise
- Dual stainless steel heat exchangers
- Built-in recirculation pump
- Field convertible between natural gas and propane
- Ultra Low NOx emissions (20 ppm)
- EZNav™ multi-line control panel with HotButton™ interface
- 1/2" gas line capable up to 24 feet
- Indoor or outdoor wall-hung installation
- Vents with 2" up to 75 ft or 3" up to 150 ft
- Cascading and common venting with up to 12 units
Applications
- Residential hot water systems
- Light commercial water heating
- Installations requiring high flow at high efficiency
- Projects needing venting flexibility and compact design
- Multi-unit configurations with cascading or common venting requirements
Navien NPE-A2 simply a smarter hot water system for today's life styles
Navien...the proven leader in condensing tankless, makes it even easier to install and set up with the new NPE-A2 series
|
Built-in recirculation system Navien’s patented ComfortFlow® system is the first to include a buffer tank, recirculation pump and fine-tuned controls into a tankless water heater, resolving the cold-water sandwich effect* and issues of minimal flow rates commonly found in other tankless water heaters. * The “cold-water sandwich effect” is the undesired introduction of cold water into the hot water supply line on occasions of frequent on/off operations. (Measure Guideline : Transitioning to a Tankless Water heater, DOE, Sept.2012). |
The built-in recirculation pump allows the NPE-A2 to recirculate water either through an external recirc line or through existing supply lines while using NaviCirc®, without the need for external pumps or controls.
Multi-line control with built-in intuitive softwareNavien’s new backlit EZNav™ control panel uses simple text and icons to make set up, operation status and troubleshooting faster and easier than ever before.
|
