Introducing the Teac TN-400BT-X Bluetooth Turntable in Walnut – Elevate Your Vinyl Experience
Discover the TN-400BT-X, a cutting-edge analog turntable that seamlessly combines traditional vinyl playback with modern Bluetooth technology, offering a unique and versatile audio experience.
Wireless Vinyl Playback
Experience the freedom of wireless vinyl listening with the TN-400BT-X. Connect effortlessly to Bluetooth® headphones and speakers, allowing you to enjoy your LP records without the constraints of wires. The built-in Bluetooth® transmitter supports high-quality audio through aptX® and AAC codecs, delivering an immersive listening experience.
Precision Rotational Speed
The TN-400BT-X features an aluminum die-cast platter with a 3-speed belt drive system (33 1/3, 45, and 78 rpm). The high torque DC motor, coupled with a low-resistance spindle made of stainless steel, ensures accurate rotational speed and reduced friction for stable playback.
Phono EQ Amplifier
Equipped with a built-in Phono EQ amplifier, the TN-400BT-X supports MM-type cartridges, enabling seamless connection to conventional hi-fi amplifiers or micro hi-fi systems. The amplifier utilizes a high-quality NJM8080 op-amp chip, designed by JRC, delivering minimal distortion for a pristine audio signal.
Subsonic Filter for Enhanced Sound
Enhance your audio experience with the TN-400BT-X's new subsonic filter, effectively eliminating frequencies below 18Hz. This feature prevents excess LF signal levels, ensuring a smoother electrical load to connected speakers, particularly beneficial when playing warped vinyl records.
S-shaped Static Balanced Tone Arm
Enjoy precise tracking during playback with the S-shaped, static-balanced aluminum tone arm. The counterweight and anti-skating mechanism allow for exact balance and tracking pressure settings. The universal type headshell facilitates easy cartridge changes, while gold-plated contact points minimize signal losses for an uncorrupted audio signal.
Bluetooth® Wireless Audio Streaming
Immerse yourself in high-quality wireless audio streaming using the TN-400BT-X's Bluetooth® transmission system. Support for aptX® and AAC codecs, along with a user-friendly single function-pairing key, ensures a seamless connection to Bluetooth® headphones or speakers.
Elegant Design
The TN-400BT-X boasts a visually stunning design with machined aluminum operation knobs and aluminum feet attached to a high-density MDF chassis. Shock-absorbing rubber provides high resistance to feedback, enhancing the overall aesthetic appeal of your vinyl playback experience.
Premium MM-type Cartridge
Included with the TN-400BT-X is an exceptional MM-type cartridge from audio-technica. Featuring a lightweight aluminum cantilever, this cartridge delivers accurate and highly musical playback, elevating your vinyl listening experience.
Transform your vinyl playback journey with the Teac TN-400BT-X – where timeless tradition meets modern innovation.
Features at a glance
- Robust high-density MDF plinth provides both vibration isolation and elegance
- 3-speed belt drive mechanism with aluminum die-cast platter (33 1/3, 45, 78 rpm)
- Newly-developed low-resistance spindle for stable rotational speed
- Static balanced S-shaped tone-arm with universal-type headshell
- Pre-installed MM-type AT95E cartridge from audio technica
- Built-in Phono EQ Amplifier with subsonic filter (off when THRU)
- High-quality Bluetooth® aptX® wireless audio transmission
- Floating construction using decoupled feet provides high feedback resistance
- Machined aluminum operation knobs and feet

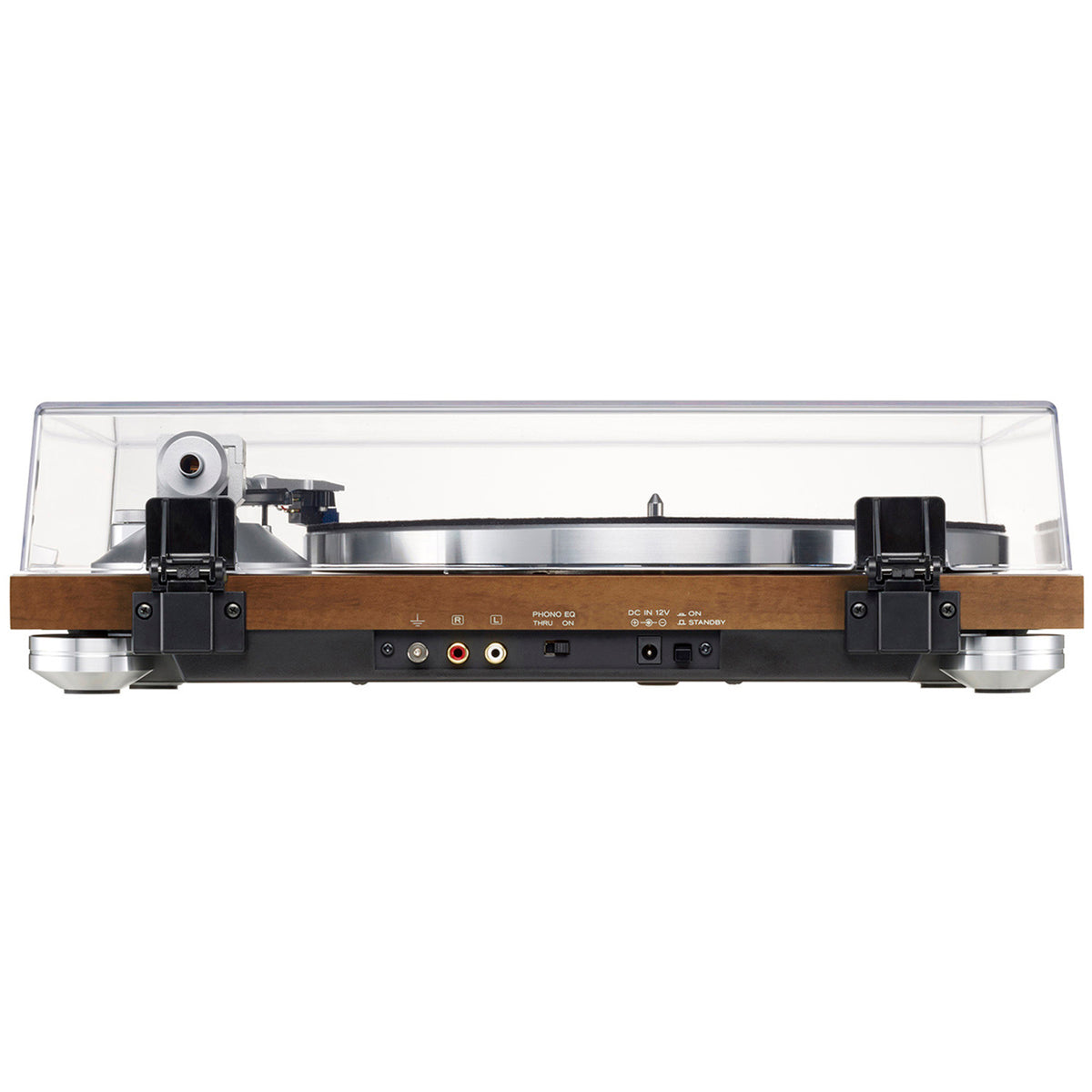

- Gold-plated RCA jacks (for LINE/PHONO output) and tone-arm contacts
- GND terminal on the rear panel
- RCA audio cable with GND wiring included
Included accessories
- Felt Mat
- EP Adapter
- Counter Weight
- Headshell (audio technica AT95E installed)
- Platter
- Dust Cover
- Dust Cover Hinges x 2
- RCA Audio Cable with GND wiring
- AC Adapter (GPE053A-V120050-Z)
- Owner’s Manual (including Warranty Card)
Tech Specs
Turntable section
- Type: Belt Drive
- Motor: DC Motor
- Rotation Speeds: 33-⅓, 45, 78 rpm
- Wow-and-Flutters: 0.2%
- S/N Ratio: more than 67dB (A-weighted), 60dB (unweighted, 20kHz, LPF)
-Turntable (Platter): Material: Aluminum Die-cast Diameter: 30cm
Tone-arm section
- Type: S-shaped, Static-balanced
- Effective Length: 223mm
- Needle Pressure Range: 0g to 5g
- Compatible Cartridge Weight: 4g to 8g, 14g to 18g (including Head-shell)
Head-shell and Cartridge sections
- Model of Cartridge: audio-technica AT95E
- Type of Cartridge: MM-type (VM-type)
- Frequency Response: 20Hz to 20,000Hz
- Output Voltage: 3.5mV (1kHz, 5cm/sec.)
- Channel Separation: 20dB (1kHz)
- Output Balance: 2.0 dB (1kHz)
- Needle Pressure: 1.5g to 2.5g (appropriate value: 2.0g)
- Needle Life: approx. 300 hours (depends on conditions)
- Coil Impedance: 2.8kohms (1kHz)
- DC Resistance: 410ohms
- Loading Resistance: 47kohms
- Loading Capacity: 100 to 200pF
- Coil Inductance: 400mH (1kHz)
- Static Compliance: 20 x 10-6cm/dyne
- Dynamic Compliance: 6.5 x 10-6cm/dyne (100Hz)
- Needle Shape: Joint-oval 0.3 x 0.7mil
- Cantilever: Aluminum Pipe
- Vertical Tracking Degree: 20 degrees
- Overall Dimensions: 17.0(W) x 17.2(H) x 30.5(D) mm
- Weight: 5.7g
- Head-shell Weight: 10g (including nuts, screws, and wires)
Analogue Output section
- Connectors: RCA jack x 1 pair (Gold-plated)
- Output Voltage: PHONO: 3.5mV +/-3dB, LINE: 155mV (-16dBV)
Bluetooth® section
- Bluetooth version: 4.0 (DUAL MODE)
- Output class: Class 2
- Codecs: SBC, AAC, Qualcomm® aptX™
- Maximum number of stored pairings: 8
Operation Power
- AC Adapter Input: AC 100 - 240V, 50/60Hz
- AC Adapter Output: DC 12V 500mA
General
- Power Consumption: 1.5W or less
- Standby Power: 0.5W or less
- Dimensions (including protrusions) : 420(W) x 117(H) x 356(D) mm / 16.5"(W) x 4.6"(H) x 14.0"(D)
- Weight: 4.9kg / 10.8lbs
- Operating temperature range: 5°C to 35°C
- Included Accessories: Felt Mat, EP Adapter, Counter Weight, Headshell (audio-technica AT95E installed), Platter, Dust Cover, Dust Cover Hinges x 2, RCA Audio Cable with GND wiring, AC Adapter (GPE053A-V120050-Z), Owner's Manual (including Warranty Card).
